4KW Power Rubber Curing Press with 2-4 Working Layers and 35# Steel Plates for Efficient Vulcanization

Brand Name : SFC

Model Number : XQB

Certification : CE,ISO9001,SGS

Place of Origin : China

MOQ : 1set

Price : $3999.00 - $39999.00/ Set

Payment Terms : T/T

Supply Ability : 200 sets/month

Delivery Time : 40 days

Packaging Details : Export standard packaging.

Power(w) : 4KW,2.2KW

Condition : New

Weight : according to size

Type : Vulcanizer

Dimension(l*w*h) : DEPEND ON THE MACHINE SIZE

Working layer : 2-4 layers

Product name : Rubber Curing Machine

Contact Now

Rubber Curing Press, Rubber Plate Vulcanizing Machine

Product Overview

The Rubber Curing Press and Rubber Plate Vulcanizing Machine is engineered for precision vulcanization processes with robust construction and advanced control systems.

Key Components & Construction

The Hot Press Machine comprises press plate, upper and lower platforms, piston stroke, hydro-cylinder, hydraulic station, and pillar column
Hot plates are manufactured from 35# steel plates after normalizing treatment and double scale rolling
Upper and lower platforms utilize Q235 steel plates with precision manufacturing including automatic cutting, mechanical slicing for welded grooves, and carbon dioxide gas shielded welding
All welding employs alloy welding wire with complete stove heat treatment to eliminate welding stress
Cylinder material is QT500-7 with HT200 for piston; alternative materials include ZG270-500 for cylinder and cold hard chilled alloy cast iron for piston
Sealing structure features combined double sealing ring with one dustproof ring for extended service life
Hydraulic system utilizes assembled oil pump as power source with manual control lever for piston operation
Electrical control system offers both automatic and semi-automatic operation modes with manual override capability

Technical Specifications

Model	Total Pressure	Daylight (mm)	Working Layer	Piston Stroke (mm)	Main Motor Power (KW)	Overall Dimensions (LxWxH) (mm)
XLB-350x350x2	0.25	125	2	250	2.2	1200x580x1200
XLB-400x400x2	0.50	125	2	250	2.2	1400x500x1400
XLB-600x600x2	1.00	125	2	250	2.2	1880x820x1680
XLB-750x850x4	1.60	125	4	500	3	1730x930x2460
XLB-900x900x2	2.5	200	2	400	4	2345x960x1385
XLB-1200x1200x1	3.15	300	1	300	4	2800x1300x2300
XLB-1300x2000x1	5.60	400	1	400	8	2000x1860x2500
XLB-1500x1500x1	8.00	800	1	800	16.5	2200x2200x4300
XLB-1500x2500x1	15.00	400	1	400	11	3000x2500x3300
XLB-2000x2000x1	20.00	400	1	400	11	3600x3000x3300

Custom Design Capability

We can design various rubber wristband making machines according to your specific requirements and specifications.

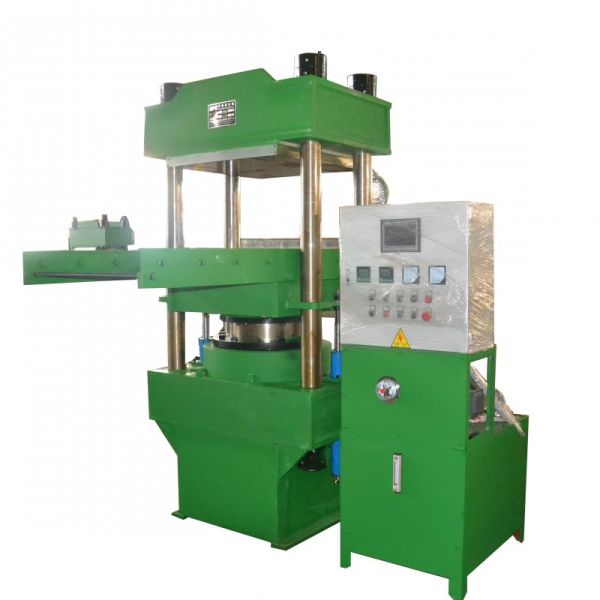

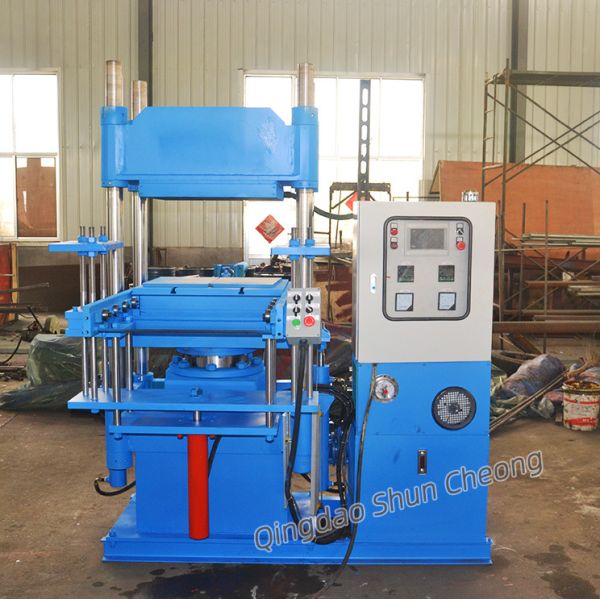

Product Gallery

4KW Power Rubber Curing Press with 2-4 Working Layers and 35# Steel Plates for Efficient Vulcanization

Our Services

Our engineers design target machines for customers and provide confirmation drawings, focusing on cost efficiency
Regular progress photos during production to keep customers informed
Complete documentation including packing list, commercial invoice, and bill of lading provided after delivery
Free technical support including foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
Overseas engineer services and worker training for machine operation
