Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device

  • 1
  • 2
  • 3

Brand Name : SFC

Model Number : XLB

Certification : CE, ISO

Place of Origin : Qingdao, China

MOQ : 1 set

Price : US$10,000.00-75,000.00

Payment Terms : L/C,T/T

Supply Ability : 150 set/year

Delivery Time : 25-35 days

Contact Now

Hot Plate Vulcanizing Press with Pull-Push Device
Basic Information
Model: XLB-DQ1200x1200x1
Customization: Available
Automation Grade: Automatic
Structure: Horizontal
Platen Size: 1200*1200 mm
Control Method: Automatic
Piston Stroke: 250 mm (Adjustable)
Type: General Rubber Machinery
Transport Package: Standard Wooden Case
Specification: National Standard
Origin: Qingdao, China
Production Capacity: 50 Sets/Month
Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device
Key Features
  • Two electrical platens with one working layer
  • Automatic operation with PLC control system
  • Customizable height from floor to top heated platen
  • Adjustable daylight when press opens
  • Independent control panel for easy operation
  • Hot plates made of HT200 with surface grinding processing
  • Plate face parallelism accuracy ±0.05mm with 1.0μm finish
  • Pre-wired for immediate operation upon power connection
  • Available with steam heating or electrical heating options
Technical Specifications
Type Total Pressure (MN) Platen Size (mm) Daylight (mm) No of Daylights Piston Stroke (mm) Plate Unit Area Pressure (kg/cm²) Main Motor Power (kW) Overall Dimension (L*W*H mm) Weight (kg)
XLB-DQ1200*1200*2 315t 1200*1200 200 2 400 22 3 1685*1320*2450 9500
XLB-DQ1300*2000*1 560t 1300*2000 400 1 400 21.5 8 2000*1860*2500 17000
XLB-Q1200*2500*1 750t 1200*2500 400 1 400 25 9.5 2560*1700*2780 20000
XLB-Q1500*2000*1 1000t 1500*2500 400 1 400 33.5 11 2810*1550*3325 24000
XLB-Q2000*3000*1 1800t 2000*3000 400 1 400 30 26 2900*3200*2860 66000
XLB-Q1400*5700*1 2800t 1400*5700 400 1 400 35 43.5 2400*5800*3600 110000
Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device

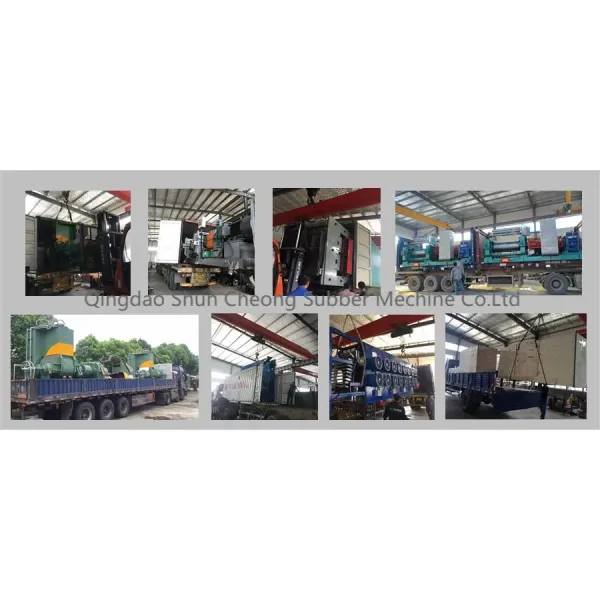

Packaging & Quality Assurance
Equipment is painted and wrapped with stretch film to protect the surface finish. Custom wooden packaging is available. Key components including the electronic control box are protected with shockproof materials and packed in wooden cases. Each press undergoes 24-hour pressure testing before shipment to ensure no oil leakage and verify piston stroke performance.
Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device
After-Sales Service
Quality Guarantee: One-year warranty with free replacement for damaged equipment
Technical Support: Professional technical personnel available via email, Skype, and other communication platforms
Customer Tracking: Regular follow-ups and maintenance support through our customer file system
Overseas Installation: Available with installation time of 2-3 days for small machines, 30 days for production lines
Additional Services
  • Custom machine design with engineering drawings
  • Production progress photos during manufacturing
  • Complete documentation including packing lists and commercial invoices
  • Free technical drawings, installation guides, and maintenance manuals
  • Overseas engineer services and operator training
Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device Hot Plate Vulcanizing Press with 1200X1200mm Platen Size PLC Control and Pull-Push Device
